| hubler bros., inc. 130 bbl dragon steel vacuum trailers |
|
| Specifications: |
• Type: Vacuum Tank Trailer; Non-DOT Spec
• Capacity: 5460 Gallons, Plus 2%
• ICC MC: None
• Commodity: Unspecified Oilfield Fluids
• Design Pressure: 15 PSI Internal, 22 INHG External, 23 PSIG
Hydrostatic Test
• Shell: 1/4" PL x 60" OD.
• Baffle: (2) 1/4" PL Flat Flanged and Dished Each with Interior
Shell Reinforcement Ring
• Stiffener: 3/8" x 2 1/2" Rolled Rings (8) External
• Welds: Internal Root, External Submerged-Arc
• Compartment: Single
• Suspension: Hutch CH 9700 w/8 Leaf Low Arch Springs
• Axles: 22,500 LB Round with Outboard Drums
• Wheels: 10 Hole Steel Disc Hub Pilot
• Tires: 11.00 x 24.5 Radials
• Brakes: 16-1/2" x 7" with Spring Parking,Auto Slacks, ABS Both
Axles
• Upper Coupler: Bolt on Adjustable
• Landing Legs: 2 Speed, Heavy Duty,High Capacity Lift
• Bumper: 4" x 8" Tube with Tow Eye
• Fenders: Full Length Formed Hose Pan (10 GA) with 1/4"
Formed Supports
• Tool Box: 18" x 18" x 36" on Driver's Side with Sealed Door
• Mud Flaps: Anti Sail
• Outlet: Two 4" Butterfly Valves at Rear with a Wedge Sump
• Reliefs: 1-1/2" Vacuum Relief, 2" Pressure Relief , both located at
top front of barrel, 2" Blow Down Line at Rear
• Manways: Four located on Top, one on Rear Head, all 21"
Domed Style with Plated Swing Bolts and Wing Nuts
• Shut Off: Ball Type Primary in Front Manway, Ball Type Secondary
12 Gallon on Driver's Side Front with Drain
• Lights: Full DOT Lights, Sealed Lights, Harness and Junction
Box with Terminal Stip, Two Rear Work Lights with Integral
Switches
• Sight Glass: 2" Sight Glass Fittings in Front and Rear Head, 1
-1/2" Plastic Sight Glass Tube installed in Rear Head with Clean
Out Tees and 2" Ball Valves Top and Bottom
• Coating: All Surfaces White Metal Steel Grit Blast, 2.5 MIL Profile
(SP-10), Interior Lined with Chemical Resistant 100% Solids
Epoxy Liner, 10-15 MIL Dry Film Thickness. Exterior Coated High
Build Epoxy Primer and Color Coated with High Solids
Polyurethane, 4-6 MIL Dry Film Thickness
• Capacity: 5460 Gallons, Plus 2%
• ICC MC: None
• Commodity: Unspecified Oilfield Fluids
• Design Pressure: 15 PSI Internal, 22 INHG External, 23 PSIG
Hydrostatic Test
• Shell: 1/4" PL x 60" OD.
• Baffle: (2) 1/4" PL Flat Flanged and Dished Each with Interior
Shell Reinforcement Ring
• Stiffener: 3/8" x 2 1/2" Rolled Rings (8) External
• Welds: Internal Root, External Submerged-Arc
• Compartment: Single
• Suspension: Hutch CH 9700 w/8 Leaf Low Arch Springs
• Axles: 22,500 LB Round with Outboard Drums
• Wheels: 10 Hole Steel Disc Hub Pilot
• Tires: 11.00 x 24.5 Radials
• Brakes: 16-1/2" x 7" with Spring Parking,Auto Slacks, ABS Both
Axles
• Upper Coupler: Bolt on Adjustable
• Landing Legs: 2 Speed, Heavy Duty,High Capacity Lift
• Bumper: 4" x 8" Tube with Tow Eye
• Fenders: Full Length Formed Hose Pan (10 GA) with 1/4"
Formed Supports
• Tool Box: 18" x 18" x 36" on Driver's Side with Sealed Door
• Mud Flaps: Anti Sail
• Outlet: Two 4" Butterfly Valves at Rear with a Wedge Sump
• Reliefs: 1-1/2" Vacuum Relief, 2" Pressure Relief , both located at
top front of barrel, 2" Blow Down Line at Rear
• Manways: Four located on Top, one on Rear Head, all 21"
Domed Style with Plated Swing Bolts and Wing Nuts
• Shut Off: Ball Type Primary in Front Manway, Ball Type Secondary
12 Gallon on Driver's Side Front with Drain
• Lights: Full DOT Lights, Sealed Lights, Harness and Junction
Box with Terminal Stip, Two Rear Work Lights with Integral
Switches
• Sight Glass: 2" Sight Glass Fittings in Front and Rear Head, 1
-1/2" Plastic Sight Glass Tube installed in Rear Head with Clean
Out Tees and 2" Ball Valves Top and Bottom
• Coating: All Surfaces White Metal Steel Grit Blast, 2.5 MIL Profile
(SP-10), Interior Lined with Chemical Resistant 100% Solids
Epoxy Liner, 10-15 MIL Dry Film Thickness. Exterior Coated High
Build Epoxy Primer and Color Coated with High Solids
Polyurethane, 4-6 MIL Dry Film Thickness

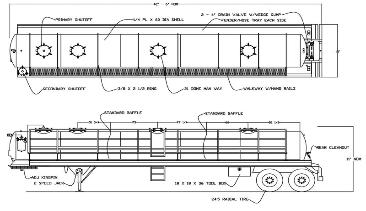

Click on pics to enlarge
